Glide Record Practice Guide



What is Glide API?

Service now Developer often using Glide API in now platform to change default behavior of the application and customize existing functionality.

Glide Classes are providing more flexibility to interacting with snow application through scripting. Using by Glide API’s we can perform some database operation instead of writing any SQL Queries

Each API contain lot of methods and each method perform different operations in Service now Applications



Types of Glide API’s

Glide API’s

Client Side	Server Side
Glide Form	Glide Record
Glide User	Glide System
Glide Ajax	Glide Date and Time
Glide Dialog Window	Glide Aggregation
Glide List	Glide Date
Glide Menu	Glide Element



What is Glide Record and usage?

This is most common and important API and frequently using in now platform

Glide Record is special Java class its native java script class and mainly running from Server Side .Glide Record is used to perform CRUD operation instead of writing SQL Queries.

This API handle both rows and columns in underlining database

In service now platform directly we can’t interact with database to perform any CRUD with SQL Queries operations if we want to do this activities then we can go for Glide Record

 Note: Always we need to test queries on a non-production instance before deploying them into production environment. An incorrectly constructed encoded query, such as including an invalid field name, produces an invalid query. When the invalid query is run, an insert (), update (), deleteRecord (), method on bad query results can result in data loss.

1.  Most Common API

2.  Running from server side

3.  Used to generate SQL Queries

4.  Perform CRUD operations

Glide Record Architecture

Instead of passing SQL Queries, we can use Java Script





Glide Record API Mapping

Glide Record Methods

Glide Record Methods
Query()	Insert()
addQuery()	deleteRecord()
addActiveQuery()	update ()
addEncodedQuery()	initialize ()
addInactiveQuery()	deleteMultiple ()
next()	updateMultiple()
get()	addNullQuery()
setLimit()	addNotNullQuery()
orderBy()	autoSysFields()
orderByDesc()	canCreate()
getRowNumber()	canRead()
hasNext()	canWrite()
getRowCount()	canDelete()
chooseWindow()	changes()
addjoinQuery()	Find()
getClassDisplayValue()	getAttribute()
getDisplayValue()	getElement()
getLabel()	getFields()
getLink()	getValue()
getLocaton	has Attachments()
getRecordClassName()	insertWithReferences()
getRelatedLists()	isNewRecord()
getRowNumber()	isValid()
getTableName()	isValidField()
restoreLocation()	isValidRecord()
saveLocation()	newRecord()
setAbortAction()	setDisplayValue()
setLocation	setForceUpdate()
setNewGuid()	setValue()
addFunction()	setWorkflow()
_next	_query
Practically work with these all methods



































Glide Record Exercises

1.    How to get result(output) in Servicneow

gs.print ('Welcome to Servicnow Academy');

gs.info ('Welcome to Servicnow Academy');

Result àWelcome to Servicenow Academy­­­­­­­­



2.    Write a simple program add two numbers



var a = 10;

var b = 20;

var c = a+b;

            gs.print (a+b);



Resultà 30



3.    Working with query() method

var inc = new GlideRecord ('incident')

//GlideRecord is main Oject and Incident is Table

inc.query (); //Query is execute in the table

while (inc.next ()) {//Loop will runs on the table

gs.print (inc.number); //Printing all incidets

}





Resultà Print all records numbers in Incident Table



4.    Working with query() and addQuery() and next() and While methods



Exercise -1: Display priority -1 tickets from incident table with addQuery methods



var inc = new GlideRecord ('incident');

inc.addQuery ('priority=1');// Add the query

inc.query ();

while(inc.next()){

gs.print(inc.number);

}



Resultà Printing all prority-1 tickets



5.    Working with Multiple Queries



Exercise-2: Passing Multiple Queries using by same methods



var inc = new GlideRecord('incident');

inc.addQuery ('active', true);          //Query 1

inc.addQuery ('priority=1');           //Query 2

inc.addQuery ('category','software');   //Query 3

inc.query ();

while(inc.next()){

gs.print (inc.number);

}



Resultà Print all records where your Condition meet



6.    Working with addEncodedQuery () method



Exercise-3: we can use addEncodedQuery method Instead of passing multiple queries into our script

 Step-1: Navigate to Incident list view and apply condition

 Step-2: Condition: active = true and priority =1 and category = software

 Step-3: Click on Run

 Step-4: Copy applied query through Copy query

 Step-5: Use this entire query into your script

Step-6: Script

var inc = new GlideRecord ('incident');

inc.addEncodedQuery('active=true^category=software^priority=1');

inc.query();

while(inc.next()){

gs.print(inc.number);

}

Exercise-4: Encoded Query set to a variable that variable to call into code



var ecq = 'active=true^category=software^priority=1';

//encodedquery set to a variable

var inc = new GlideRecord('incident');

inc.addEncodedQuery (ecq);

inc.query();

while (inc.next()){

gs.print (inc.number);

}



ResultàPrint all records where this meet 'active=true^category=software^priority=1';



       Working with addQuery (‘String’,’Operator’,’Value’)

Practice with these all SQL Operators for better experience

§  =

§  !=

§  >

§  >=

§  <

§  <=

Strings (must be in upper case):

§  =

§  !=

§  IN

§  NOT IN

§  STARTSWITH

§  ENDSWITH

§  CONTAINS

§  DOES NOT CONTAIN

§  INSTANCEOF



Exercise-5: Get Active and Priority is less than or equal to 2



var inc = new GlideRecord('incident');

inc.addActiveQuery();

inc.addQuery('priority','<=',2);

inc.query();

while(inc.next()){

  gs.print(inc.number);

}

Resultà Print Critical-1 and High-2 tickets



Exercise-7: Working with SQL operators <= and CONTAINS

var inc = new GlideRecord('incident');

inc.addActiveQuery();

inc.addQuery('priority','<=',2);

inc.addQuery('short_description','CONTAINS','SAP');

inc.query();

while(inc.next()){

gs.print(inc.number + ' ' + inc.short_description);

}



ResultàPrint all records where our condition meet like (<=2 and CONTAINS)



Exercise-8: Working with IN operator and print category of Software and Hardware

var cat = ['software’, ‘hardware'];

var inc = new GlideRecord('incident');

inc.addQuery('category', 'IN', cat);

inc.query();

while(inc.next()) {

gs.print(inc.getValue('number') + ' ' + inc.getValue('short_description')) ;

  }

Resultà Print where category is Software ad Hardware



Exercise-9: Working with STARTSWITH Operator



var inc = new GlideRecord('incident');

inc.addQuery('category', 'STARTSWITH', 'net');

inc.query();

while(inc.next()) {

gs.print(inc.number);

  }



8. Working with addActiveQuery () method

Exercise-10: Instead of use active=true this method directly we can use addActiveQuery

var inc = new GlideRecord('incident');

inc.addActiveQuery ();// instead if passing active = true

inc.addQuery ('priority',1);

inc.query ();

while (inc.next ()){

  gs.info (inc.number);

}

 Resultà Print all records where condition is equal to active is true and priority-1



9. Working with addInactiveQuery () method

Exercise-10: Instead of use active=false this method directly we can use addInactiveQuery

var inc = new GlideRecord ('incident');

inc.addInactiveQuery (); //Opposite of active query

inc.addQuery ('priority=1');

inc.query ();

while (inc.next ()) {

  gs.print (inc.number);

}



Resultà Print only inactive Records like Incident state is Closed

10. Working with getEncodedQuery () method

Exercise-11: getEncodedQuery from our code

var inc = new GlideRecord ('incident');

inc.addEncodedQuery ('active=true^category=software^priority=1');

inc.query();

while (inc.next ()) {

gs.print (inc.getEncodedQuery ());

}

Example: 2

Resultà Print our encodedQuery

11. Working with orderBy () method

      Exercise-12: Display all records in order wise (Assending) it depends on field values

var inc = new GlideRecord('incident');

inc.addQuery('priority=1');

inc.addQuery('category=software');

inc.orderBy('short_description');

inc.query();

while(inc.next()){

gs.print(inc.number + ' ' + inc.short_description);

}

Result Print all incidents order wise depends on Short Description



12. Working with orderByDesc () method

Exercise-12: Display all records in order wise (Descending) it depends on field values

var inc = new GlideRecord('incident');

inc.addQuery('priority=1');

inc.addQuery('category=software');

inc.orderByDesc('short_description');

inc.query();

while(inc.next()){

gs.print(inc.number + ' ' + inc.short_description);

}



      ResultàPrint all records in descending order (short_description)

13. Working with setLimit () method

     Exercise-13: Display limited records from specified table

var inc = new GlideRecord('incident');

inc.addQuery('priority=1');

inc.orderByDesc('short_description');

inc.setLimit(10);

inc.query();

while(inc.next()){

gs.print(inc.number + ' ' + inc.short_description);

}

      Result: Print only latest 10 records created from given table



14. Working with get () Method

       Exercise-14: Get record sys_id depends on INC number or Get incident record number depends on sys_id

var inc = new GlideRecord('incident');

inc.get('number','INC0009005');

gs.print(inc.sys_id);



Result: Print sys_id related to incident number

Example-2

Result: Print Incident number related to sys_id



15. Working with chooseWindow () method

Exercise-15: Display records between two numbers

var inc = new GlideRecord('incident');

inc.addQuery('priority=1');

inc.addActiveQuery();

inc.chooseWindow(3,7)//include first value exclued secod value

inc.query()

while(inc.next()){

  gs.print(inc.number);;

}

Resultà Print records from number 3 to 7 (4 records) first number included and second number excluded



16. Working with getRowCount () method

         Exercise-16: Display all records from particular table (Incident)

  var inc = new GlideRecord('incident');

  inc.query()

  gs.print(inc.getRowCount());

Result: Print number of records in particular table

Example-2: Display all active users in our sys_user tables

var inc = new GlideRecord('sys_user');

inc.addQuery('active=true');

inc.query();

gs.print ('Active users are:' + inc.getRowCount ());

Result: Print number of record in table



17. Working getTableName () method

        Exercise-17: This method is used to get glide record table name

var inc = new GlideRecord ('change_request');

gs.print (inc.getTableName ());



Result: Display current table name from glide record

18. Working getValue () method

       Exercise-18: Get value of particular field in the table

var inc = new GlideRecord('incident');

inc.addQuery('active=true');

inc.query();

while(inc.next()){

  gs.print(inc.getValue('short_description'));

}



Resultà Print the value of field from particular table

19. Working getDisplayValue () method

       18. Print display value instead of actual value



var inc = new GlideRecord('incident');

inc.addQuery ('priority=1')

inc.query ();

while (inc.next ()){

gs.print (inc.priority.getDisplayValue ());

}



 Resultà Print display value of respective field



20. Working hasNext () method

        Exercise-19: This method will returns true if iterator have more elements.

var inc = new GlideRecord ('incident');

inc.query ();

gs.print (inc.hasNext ());



         Resultà Print Boolean value (True)

21. Working with getUniqueValue () method

      Exercise-20: Gets the uniue key of the record, which is usually the sys_id unless otherwise specified.



var inc = new GlideRecord('incident');

inc.query();

inc.next();

var uniqvalue = inc.getUniqueValue();

gs.print(uniqvalue);



22. Working with setValue () method

       Exercise-22: This method is used to sets the value of the specific field with the specified value.

  var attriName = 'category';

  var inc = new GlideRecord ('incident');

  inc.initialize ();

  inc.setValue(attriName,'network');

  inc.setValue('short_description','Critical VPN Issue');

  inc.insert();

  gs.print ('Category is ' + inc.category + ' and ' + 'issue is: ' + inc.short_description);



Resultà Create a new record and Set a value into category field



23. Working with getElement () method

  Exercise-23: This is used to get the specified column of the current record.



var elementName = 'short_description'

var inc = new GlideRecord('incident');

inc.initialize();

inc.setValue (elementName,'I am facing VPN Problem');

inc.insert ();

gs.print(inc.getElement('short_description'));



Result: Print current record column value

24. Working with getRecordClassName () method

        Exercise-24: Retrieves the class name for the current record.

var inc = new GlideRecord('change_request');

var grcn = inc.getRecordClassName ();

gs.info (grcn);



Resultà Print record class name (Table Name)



25. Working with initialize () and insert () method

 Exercise-25: These methods are used to Inserts a new record using the field values that have been set for the current record



var inc = new GlideRecord ('incident');

inc.initialize (); //Compose incident form

inc.category = 'network'; // set field values

inc.short_description = 'Firewall Issue';

inc.priorty = 1;

inc.insert (); // create new record

gs.print (inc.number);// print new record incident number



Resultà Create new record and print new record number



26. Working with isNewRecord () and newRecord () method

Exercise-26: Checks if the current record is a new record that has not yet been inserted into the database.

var inc = new GlideRecord ('incident');

inc.newRecord ();

gs.info (inc.isNewRecord());



Resultà Return boolion value true or false (value is True)

27. Working with isValid () method

       Exercise-27: Define the current table exist or not. If table exist display true not exist display false

var inc = new GlideRecord ('incident');

gs.print (inc.isValid ());



        Result: True

Example: 2

var inc = new GlideRecord ('srinivas');

gs.print (inc.isValid ());





Resultà False



28. Working with isValidField () method

      Exercise-27: Determines if the specified field is defined in the current table. If Field exist in current record display true not exist display false

var inc = new GlideRecord ('incident');

gs.print (inc.isValidField (‘category’);





Resultà Boolion value is True





29. Working with getLink()  and getProperty() method

Exercise-29: Retrieves a link to the current record.



var inc = new GlideRecord('incident');

inc.addActiveQuery();

inc.addQuery('category','software');

inc.addQuery('priority=1');

inc.query();

while(inc.next()){

gs.print(gs.getProperty('glide.servlet.uri') + inc.getLink(false));

}





Resultà Return the link of record



Example: 2 Return first record Link from query



29. Working with isValidRecord () method

Exercise-29: Determines if a record was actually returned by the query/get record operation.



var inc = new GlideRecord ('incident');

inc.get ('number','INC0010012 ');

gs.print (inc.number + ' exists:' + inc.isValidRecord ());





Resultà Display boolion value either true or false, True



30. Working with newRecord () method

Exercise-30: Creates a new GlideRecord record, sets the default values for the fields, and assigns a unique ID to the record.



var inc = new GlideRecord ('incident');

inc.newRecord ();

inc.short_description = 'Creting new record';

inc.category = 'software';

inc.insert ();

gs.print (inc.number);



Result: Create new record and print

30. Working with addNullQuery () method

      Exercise-30: display all records where the value of the specified field is null.



var inc = new GlideRecord('incident');

inc.addNullQuery ('short_description')

inc.query ();

while (inc.next ()) {

gs.print (inc.number)

}





Resultà Print all records where the specific field value is Null



31. Working with addNotNullQuery () method

      Exercise-30: Opposite of addNullQuery methods display all records where the value of the specified field is not null.



var inc = new GlideRecord('incident');

inc.addNotNullQuery ('short_description')

inc.query ();

while (inc.next ()) {

gs.print (inc.number)

}



Result: Print all records where the specific field value is not null

32. Working with update () method single record

      Exercise-32: Update specific record from table



var inc = new GlideRecord ('incident');

inc.get ('number','INC0000057');

inc.setValue ('state', 2);

inc.update ();



Resultà update record as expected



33. Working with updateMultiple () method multiple record



Exercise-33: Updates multiple records in a stated query with a specified set of changes from respected table.



var inc = new GlideRecord('incident');

inc.addQuery ('category', 'hardware');

inc.setValue('category',  'software');

inc.updateMultiple ();



Resultà Update multiple records as expected





Exercise: 2





34. Working with deleteRecord () method single record



Exercise-33: This method is used to delete single record from table



var inc = new GlideRecord('incident');

inc.get ('number','INC0010013');// need to delete this record

inc.deleteRecord ();





Resultà Delete single record as expected



35. Working with deleteMultiple () method multiple record



Exercise-35: Deletes multiple records that satisfy the query condition.

var inc = new GlideRecord('incident');

inc.addQuery('priority', 4);

inc.query ();

inc.deleteMultiple ();



Resultà Delete multiple records as expected



36. Working with canCreate () method



Exercise-36: Determines if the Access Control Rules, which include the user's roles, permit create new records in this table.



var inc = new GlideRecord ('incident');

gs.print (inc.canCreate ());





ResultàTrue (user have permission to create incident record)



37. Working with canRead () method



Exercise-36: Determines if the Access Control Rules, which include the user's roles, permit reading records in this table.



var inc = new GlideRecord('incident');

gs.print (inc.canRead ());





ResultàTrue (user have permission to read incident record)



38. Working with canWrite () method



Exercise-37: Determines if the Access Control Rules, which include the user's roles, permit editing records in this table.

var inc = new GlideRecord ('incident');

gs.print (inc.canWrite ());



ResultàTrue (user have permission to write incident record)



39. Working with canDelete () method



Exercise-38: Determines if the Access Control Rules, which include the user's roles, permit deleting records in this table.

var inc = new GlideRecord ('incident');

gs.print (inc.canDelete ());





ResultàTrue (user have permission to delete incident record)



40. Working with autoSysFields () and setWorkflow () methods

Enables or disables the update to the fields, this is often used for manually updating field values on a record while leaving historical information unchanged.



sys_updated_by

sys_updated

sys_updated_on

sys_mod_count

sys_created_by

sys_created_on



Note: autoSysFields method is not working on scoped application.



Note: setWorkflow (false) not run any other business rules





Exercise-40: Update multiple records without update any system fields



var inc = new GlideRecord ('incident');

inc.addQuery ('state', 1);

inc.query ();

while (inc.next ()) {

inc.autoSysFields (false);

inc.setWorkflow (false);

inc.setValue ('state', 2);

inc.update ();

}





Resultà Updating records without update system fields

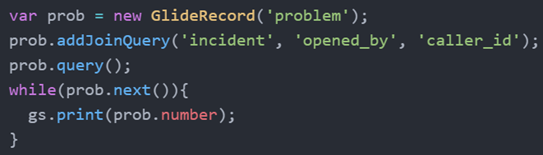

41. Working with addJoinQuery () methods

Exercise-40: Find problems that have an incident attached. This example returns problems that have associated incidents.



var prob = new GlideRecord('problem');

prob.addJoinQuery('incident', 'opened_by', 'caller_id');

prob.query();

while(prob.next()){

 gs.print(prob.number);

}



Resultà Display all problem records associated incident



42. Working with getGlideObject () and getNumericValue () and setAbortAction methods



Exercise-41: This is method is used to cancel current action when condition is false



if ((!current.u_date1.nil()) && (!current.u_date2.nil())) {

var start = current.u_date1.getGlideObject().getNumericValue();

var end = current.u_date2.getGlideObject().getNumericValue();

if (start > end) {

gs.addInfoMessage('start must be before end');

current.u_date1.setError('start must be before end');

current.setAbortAction(true);

}

}
